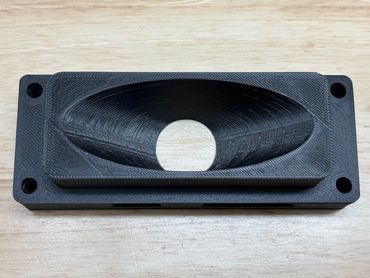

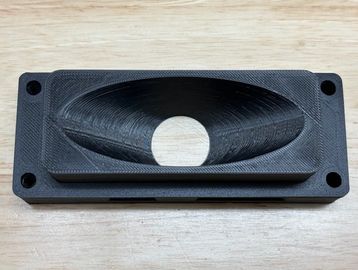

Tweeters Eliptrac Hf and Eliptrac HFII

---

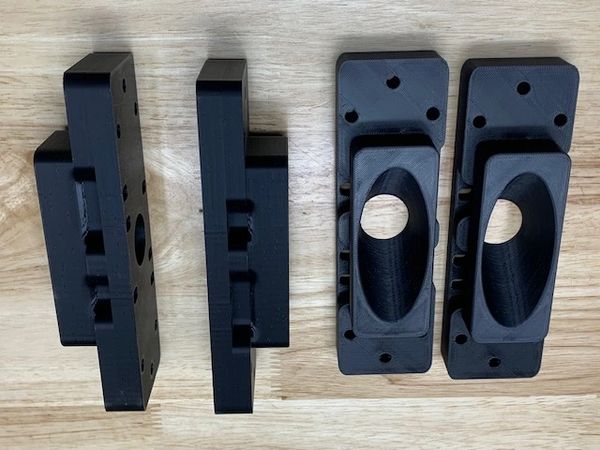

I have  several tweeters I am working on to fill the many changes Klipsch has made over the years.

Klipschorn Lascala Belle.

 Early small and narrow  *

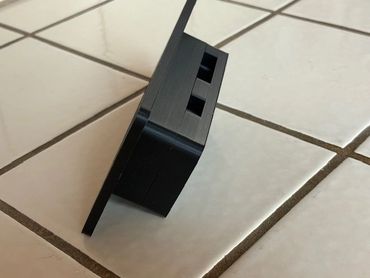

Z bracket WIP

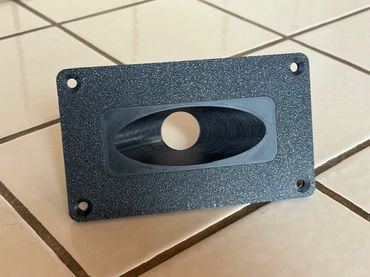

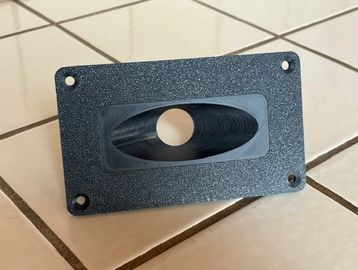

Klipshorn molded flush non Z bracket *

Heresy and Cornwall.

Sealed tweeters*

Thread on tweeters available for 1 3/8-18  drivers.

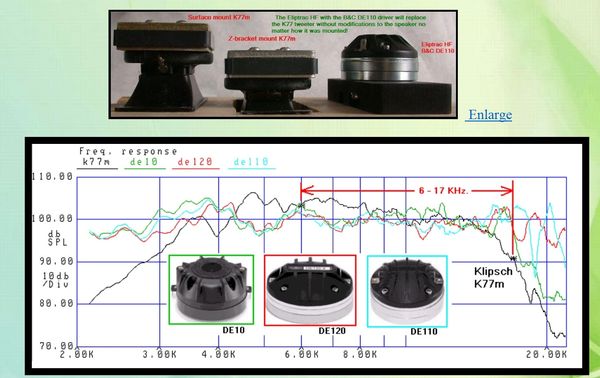

Here is a compilation graph provided by ALK Engineering.

All of these tweeters Perform well.

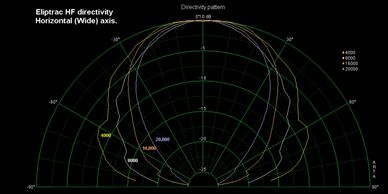

Notice the Conical Controlled Directivity design doesn't suffer from collapsing polars or rising response Exponential and Tractrix tweeters exhibit.

The B&C DE-110 is a good driver for  tight areas - 2.4 inches

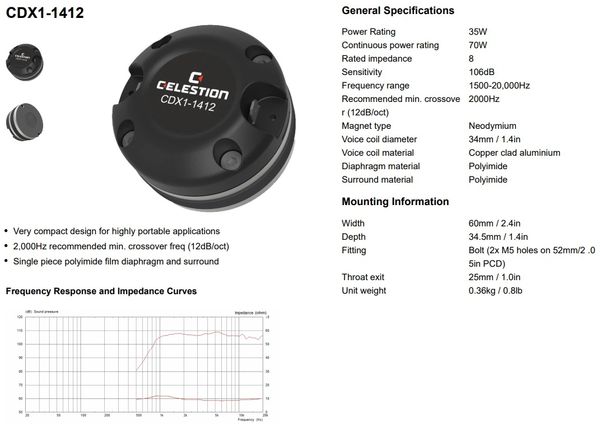

The Celestion CDX1-1412 also looks like a good candidate as well -

2.4 inches.

There are several compatible drivers for use with the Eliptrac HF and Klipsch Heritage speakers.

Klipschorn , Belle and Lascala

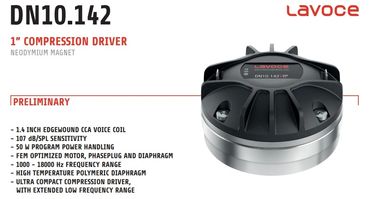

LaVoce DN-10-142  Extension of Heritage sound.

B&C De-110 and DE-120 Elegant adds  accuracy.

Celestion CDX1-1412 adds atmosphere and zest.

Cornwall

B&C DE-10 smooth upgrade never harsh.

B&C De-110 and DE-120 Elegant adds  accuracy.

Celestion CDX1-1412 adds atmosphere and zest.

LaVoce DN-10-142  Extension of Heritage sound.

Heresy

B&C De-110 and DE-120 Elegant adds  accuracy.

Celestion CDX1-1412 adds atmosphere and zest.

LaVoce DN-10-142  Extension of Heritage sound.
